Data report: major element oxides and Cl of volcanic glass shards at Japan Trench Site M0090, IODP Expedition 386: searching for the To-Cu marker volcanic ash¹

Susanne M. Straub²

¹Straub, S.M., 2025. Data report: major element oxides and Cl of volcanic glass shards at Japan Trench Site M0090, IODP Expedition 386: searching for the To-Cu marker volcanic ash. In Strasser, M., Ikehara, K., Everest, J., and the Expedition 386 Scientists, Japan Trench Paleoseismology. Proceedings of the International Ocean Discovery Program, 386: College Station, TX (International Ocean Discovery Program). https://doi.org/10.14379/iodp.proc.386.201.2025

²Lamont-Doherty Earth Observatory, Columbia University, USA. Correspondence author: smstraub@ldeo.columbia.edu

Abstract

Major element oxides and Cl of dispersed (invisible to the naked eye) volcanic glass shards were measured in clastic sediments of the central Japan Trench recovered at Site M0090 during International Ocean Discovery Program Expedition 386, Japan Trench Paleoseismology. The glass shards were extracted from two giant piston cores, Core 386-M0090B-1H (Sections 1H-15, 80 cm, to 1H-14, 50 cm) and Core 386-M0090D-1H (Sections 1H-14, 0 cm, to 1H-13, 50 cm), which together represent 180 cm of the sediment. High-resolution sampling with 1 and 5 cm spacing (65 samples) aimed to better define the stratigraphic position of the To-Cu marker ash (~6000 y before present), which had previously been identified within this interval. Electron microprobe analysis reveals low-K volcanic glasses (<1.5 wt% K₂O; ~67% of the glass data) and medium- and high-K glasses (>1.5 to 5 wt% K₂O; ~33% of the glass data) in all 65 samples. The low-K volcanic glasses display the typical compositional characteristics of volcanic glass from the Towada volcano in Northern Honshu and may be mostly of To-Cu origin. The medium- and high-K glasses are likely an assortment of volcanic glasses produced during various Holocene and Pleistocene explosive eruptions of the Honshu arc volcanoes. Variation in grain size fraction, magnetic susceptibility, bulk density, and natural gamma radiation of the sediment sequence sampled suggests that all glass shards were emplaced in turbidite flow either syn- or posteruptively with a major explosive eruption of the Towada volcano.

1. Introduction

The goal of International Ocean Discovery Program (IODP) Expedition 386 was to obtain a long-term record of earthquake-triggered event deposits in the Japan Trench (Strasser et al., 2024). To this purpose, a total of 29 giant piston cores, 20–40 m in length, were recovered from 11 sediment-filled basins on the bottom of the Japan Trench (Figure F1). The cored sediment consists mostly of clay, silty clay, and clayey silt, which is interspersed with centimeter- to meter-thick coarser grained layers rich in silt and very fine sand (Strasser et al., 2024). In its entirety, most of the cored trench sediments are redeposited. Redeposition, together with the young Holocene to very late Pleistocene age of the sediments (<28,000 y; Strasser et al., 2024) and the hadal water depths (7745–8023 m) below the calcite-compensation depth, limits biostratigraphic and paleomagnetic dating of these deposits. Therefore, marker fallout ash beds produced by the Holocene and late Pleistocene large-magnitude explosive eruptions (volcanic explosivity index [VEI] ≥ 5 [Newhall and Self, 1982]) from the Honshu arc volcanoes (e.g., Machida, 2002; Aoki et al., 2008; Kimura et al., 2015; Ikehara et al., 2017) play a vital role in the intersite stratigraphic correlation (Satoguchi et al., 2024; Strasser et al., 2024).

Postcruise work identified several marker ash beds in Expedition 386 cores, such as the To-Cu (5986–5899 cal y BP), Hj-O (12,000 y), To-H (15,515–15,895 y), and As-K (16,619 ± 74 y) (Satoguchi et al., 2024). In addition, marker layers As-B (108 CE) and H-FP (555–615 CE) were tentatively identified (Satoguchi et al., 2024). Among these marker beds, the fallout ash deposits from Towada volcano in North Honshu are important because they have distinct low-K, high-silica compositions and are important middle Holocene to late Pleistocene age markers of the larger Tohoku region (northern part of North Honshu) (e.g., Machida, 1999b; Ishimura and Hiramine, 2020). The Towada marker ash beds range from the young, historic Towada‐a (To‐a) tephra (915 CE) to the To-Cu ash produced by a VEI = 5 explosive eruption at 5986–5899 cal y BP (McLean et al., 2018), and the To‐H (12,200–14,000 BP) and Towada-Ofudo (To-Of) tephras (ca. 33 ka), which were produced by larger VEI > 7 eruptions (Machida, 1999a). Fallout marker beds To-a, To-Cu, and To-H have previously been identified in the marine sediments east of Tohoku (Ikehara et al., 2017; Matsu’ura and Komatsubara, 2018). The To-Cu ash fallout distribution is best investigated from distal and proximal outcrops across North Honshu (Ishimura and Hiramine, 2020) and marine ash beds offshore northern North Honshu (Ikehara et al., 2017; Matsu’ura and Komatsubara, 2018). The explosive To-Cu eruption had three phases that produced first the most widely spread Chuseri pumice (Cu) (which recently has even been reported from mainland China [Sun et al., 2021]), followed by the Kanegasawa pumice (Kn) and Utarube ash (Ut) (Ishimura and Hiramine, 2020). Isopach maps based on multiple subaerial outcrops across Honshu indicate a south-to-southeast main axis of the To-Cu fallout ash and thicknesses of several centimeters at the eastern North Honshu coast closest to Site M0090 (Ishimura and Hiramine, 2020) (Figure F1).

I targeted a sediment interval where a light reddish brown silt-sized tephra lens in Section 386-M0090D-1H-16 between 82.3 and 82.8 cm (Strasser et al., 2023a) has been identified as To-Cu ash bed (Satoguchi et al., 2024). This ash bed contains abundant pumiceous-type volcanic glass shards with fibrous and bubble-wall types, with subordinate brown volcanic glass shards (Strasser et al., 2023a). A problem, however, is that this To-Cu ash bed is contained within a ~130 cm thick layered deposit rich in silt and fine sand (Strasser et al., 2023a). This deposit has a sharp bottom at Section 1H-17, 30 cm, ~50 cm below the To-Cu bed, where magnetic susceptibility (MS) and bulk density abruptly increase and natural gamma radiation (NGR) decreases (Strasser et al., 2024). The latter three variables gradually return to their previous levels at the top of Section 1H-16 (0 cm), where, in addition, the silt and fine sand fractions decrease and the sediment becomes more clay rich again. In their entirety, these observations suggest that the ~130 cm thick coarse-grain sequence may have been deposited as a turbidite. Thus, the position of the identified To-Cu fallout bed at Section 1H-16, 83 cm, in the middle of this coarse-grain sequence raises concerns about whether the To-Cu tephra identified was indeed emplaced as a primary fallout deposit or whether the To-Cu tephra was entrained in a turbidite flow that accumulated during or after the To-Cu eruption in the Japan Trench basin.

To better understand the emplacement mode of the To-Cu tephra at Site M0090, I conducted high-resolution sampling with 1 or 5 cm spacing of sediment with a total thickness of 180 cm below and above the identified To-Cu marker bed for glass shards of dispersed tephra (dispersed tephra is not visible by the naked eye [Straub and Schmincke, 1998; Corry-Saavedra et al., 2019]) and analyzed the composition of the glass shards.

2. Materials and methods

2.1. Sample and sample preparation

Sediment samples were taken from two intervals in Holes M0090B and M0090D, where the presence of the To-Cu tephra was suspected based on preliminary results right after the shipboard sampling party in late 2022 (M. Strasser and K. Ikehara, pers. comm., 2022).

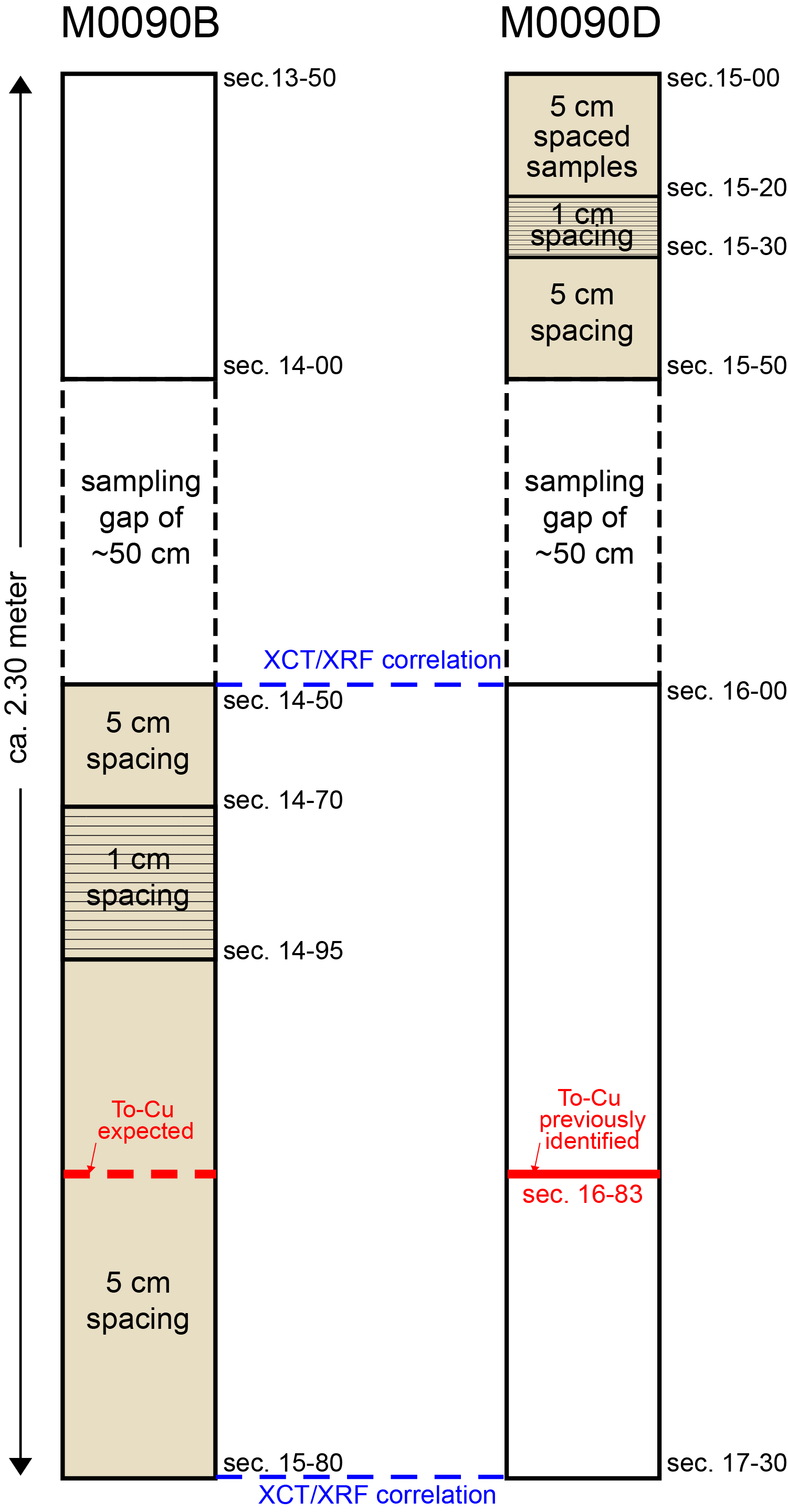

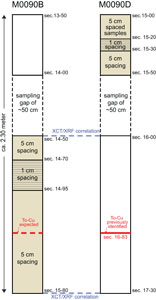

A lower stratigraphic section, 130 cm thick and composed of silt and fine sand, was sampled in Hole M0090B between Sections 1H-15, 80 cm (bottom), and 1H-14, 50 cm (top) (Figure F2). According to X-ray fluorescence (XRF) (Strasser et al., 2023a; Lin et al., 2024), this coarse-grained layered sequence correlates with the interval in Hole M0090D from Sections 1H-17, 30 cm (bottom), to 1H-16, 0 cm (top), where the To-Cu ash was identified in Section 1H-16, 83 cm (Satoguchi et al., 2024). Therefore, in Hole M0090B, the To-Cu ash is approximately located around Section 1H-15, 30 cm (Figure F2). According to Strasser et al. (2024), who used the composite core depth in meters below seafloor (mbsf), this section corresponds to the main part of the coarse-grained, graded, and silt- and sand-rich layers above tie-point C1-TP1 (see figure 9 in Strasser et al. [2024]).

Additionally, a stratigraphically higher, 50 cm thick interval was sampled in Section 386-M0090D-1H-15 between 50 cm (bottom) and 0 cm (top). In Hole M0090B, the stratigraphically higher interval is estimated to be located between Sections 1H-14, 0 cm (bottom), and 1H-13, 50 cm (top) (Figure F2). For this study, the stratigraphically lower and higher intervals were considered to represent a single stratigraphic column separated by an approximately 50 cm thick gap without samples. Hole-to-hole correlation might not be perfect on the millimeter scale, but it is sufficiently robust for this study.

The sediment column was sampled using six 2 cm × 2 cm U-channels that were 30–40 cm long. Pieces of soft sediment, either 1 or 5 cm long, were cut from the U-channels with a spatula. Closer spaced samples (1 cm) were collected in intervals where the presence of To-Cu was initially suspected (Figure F2) before it was later identified in Section 386-M0090D-1H-16, 83 cm, by Satoguchi et al. (2024). A total of 65 samples were collected—47 from the lower interval and 18 from the higher interval—which include 35 samples of 1 cm thickness and 30 samples of 5 cm thickness. The samples are listed in Table T1.

The full sample volume was processed for the 1 cm samples; about half of the sample volume was processed for the 5 cm samples. The samples were freeze-dried and weighed before wet-sieving with tap water through single-use 27 µm polyester mesh screens to remove the clay and fine silt. The coarser fraction >27 µm was dried at ~40°C, weighted, and dry-sieved into >125 µm, 63–125 µm, and <63 µm size fractions.

The >125 µm fraction had rarely any lithogenic or biogenic particles except for fine sand-sized (>125–250 µm) pumice particles found in the stratigraphically higher interval in Samples 386-M0090D-1H-15, 5–10 cm, and 1H-15, 10–15 cm. Sufficient volcanic glass shards and other volcanogenic and nonvolcanogenic particles (such as tests of diatoms and radiolaria) were found in the 63–125 µm fraction. The 63–125 µm fraction was mounted for microbeam analyses in its entirety without further separation to avoid fractionation of the glass shards, which is unavoidable when trying to separate silicic (rhyolitic) glasses from the silica tests.

Mount preparation for microbeam analyses followed the methods of Kutterolf et al. (2018). Several 1 inch diameter acrylic tablets with 12 holes of 4 mm diameter were used to mount 12 samples each. A small amount of the 63–125 µm fraction was filled into the holes before filling with epoxy. The tablets were ground with 400 and 600 grit (American National Standards Institute [ANSI]) silicon carbide powder until ash particles of all 12 samples were sufficiently exposed before finishing the mount with 6 and 1 µm diamond polish.

2.2. Electron microprobe analysis

Electron microprobe analyses were carried out at the American Museum of Natural History (AMNH) in New York City (USA) with a Cameca SXFive Tactics microprobe analyzer equipped with five wavelength dispersive spectrometers. The sample mounts were carbon-coated before analysis. The acceleration voltage was 15 kV. A small beam diameter of 5 µm was enforced by the small area of exposed glass on the glass shards that are vesicular and often have microliths. Elements Si, K, and Na were measured with a 6 nA beam current, using LPET (K), LTAP (Na), and TAP (Si) crystals and peak counting times of 20 s (Si), 30 s (K), and 20 s (Na). Given the well-known loss of Na in silicic glass shards, the in-built t-zero mode was used to correct for Na loss. The t-zero method measures consecutively six peak/background ratios during the 20 s interval, which allows the determination of the Na loss rate (typically exponential) for a given data point. Na concentration was calculated by extrapolation of Na back to the time zero at the start of measurement (comparable to the backcounting method by Devine et al. [1995]). All other elements (Ti, Al, Mn, Fe, Mg, Ca, P, and Cl) were analyzed at 10 nA with a peak counting time of 45 s, except for Mg and Cl, which were counted for 90 s. A ZAF data reduction was carried out by means of the built-in PAP routine.

Typically, 10–15 glass shards per sample were analyzed. From a total of 800 individual electron microprobe analysis data points, 682 points (83%) were volcanic glass; the others hit other materials (biogenic silica, vesicles, microliths, inclusions, etc). Volcanic glass data were obtained from all 65 samples with an average of 10 ± 2 glass data points per sample.

Precision and accuracy of the major element oxides and Cl were monitored by the concurrent analyses of anhydrous and hydrous glasses. These include the basalt glass ML3B-G and the andesite glass StHS6/80-G from Jochum et al. (2006) and the in-house rhyolite glass BSB (Big Southern Butte) (J. Webster, pers. comm., 2024). The averages obtained compare well to the target values of long-term averages (Straub et al., 2024). There is no evidence of alkali loss in the anhydrous glass. Precision was monitored with a homogeneous but uncertified anhydrous rhyolite glass (RG) that closely matches the To-Cu glass composition. The averages for element oxides obtained from 48 data points and normalized to 100% are SiO₂ = 77.3 ± 0.42 wt%, CaO = 1.64 ± 0.16 wt%, and K₂O = 2.13 ± 0.04 wt% with precisions (defined as percentage of one standard deviation of the average) of 0.6%, 3.3% and 1.8%, respectively (Tables T2, T3). Finally, a hydrous rhyolite glass chip (494) with an estimated 4.3 wt% H₂O (Devine et al., 1995) was used to monitor alkali stability and SiO₂ and Al₂O₃ ingrowth for hydrous glasses. Based on the target values given by Devine et al. (1995) and long-term averages of this glass chip (Straub et al., 2024), no evidence for instability/ingrowth for SiO₂, Al₂O₃, or K₂O was found. However, some Na₂O loss (up ~0.5 wt% absolute) seems to occur, which is not correctable by the t-zero mode at a beam current of 6 nA.

All electron microprobe data (samples and standards) are given in Tables T2 and T3.

3. Results

3.1. Identification of the To-Cu volcanic glasses

Volcanic glass shards observed are typically vesicular and colorless and include pumiceous frothy bubble wall shards. Sometimes the glasses contain microliths. All glass shards are rhyolitic with SiO₂ > 71 wt% when normalized to 100% sum of oxides (Figure F3). The K₂O concentrations vary widely from low-K (~1.4 wt% K₂O) to high-K (~5 wt% K₂O) compositions (Figure F3A). In the CaO versus K₂O space, two compositional groups of the Site M0090 glasses can be distinguished (Figure F3B) by the simple means of separating the glasses into a low-K₂O (<1.5 wt%) and high-K₂O (>1.5 wt%) group.

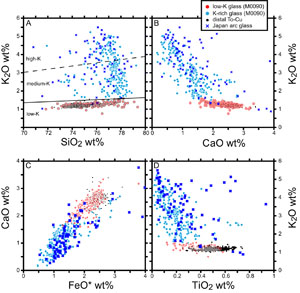

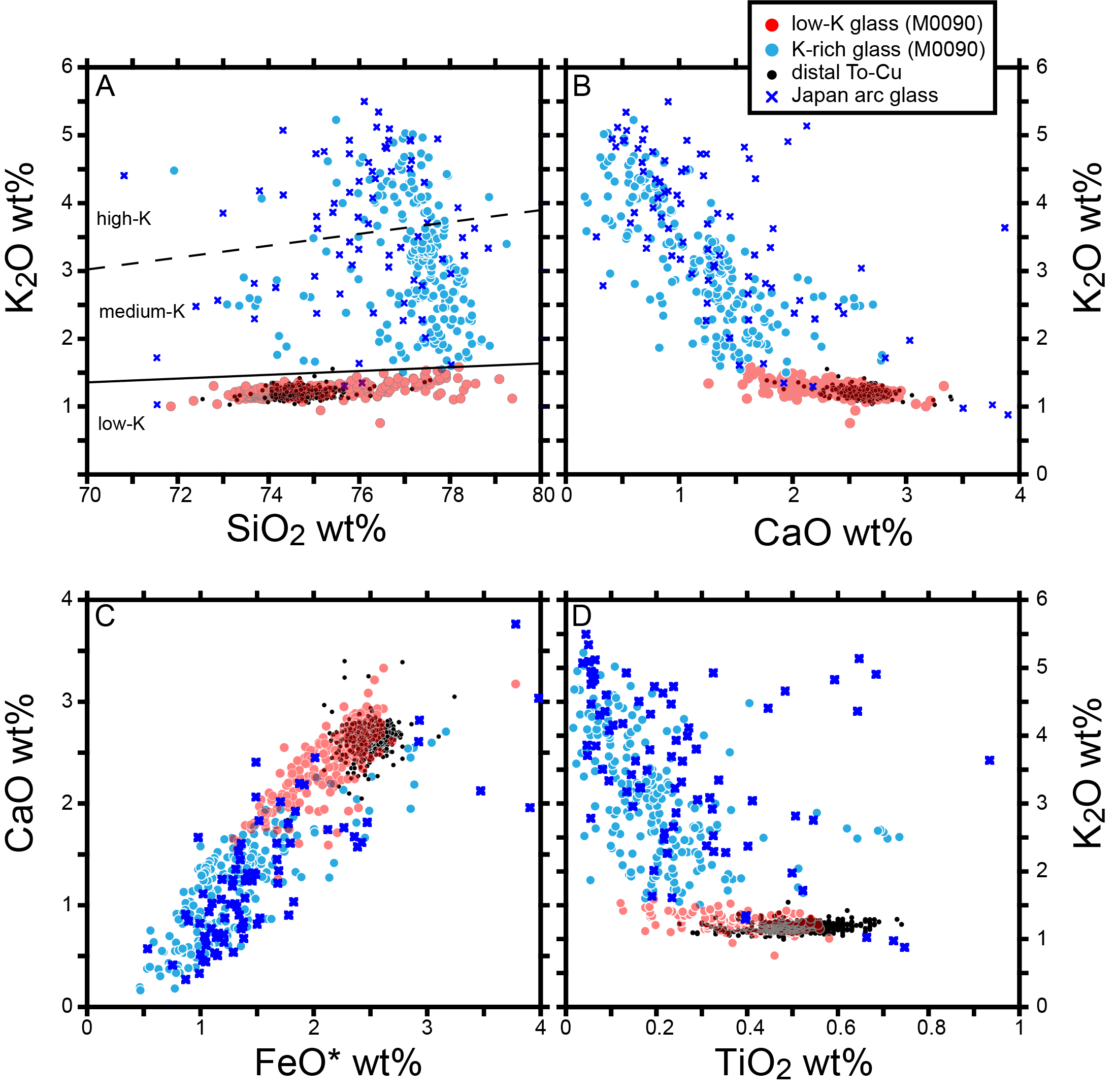

The low-K₂O group comprises 67% of the glasses measured. It has comparatively higher CaO, FeO*, and TiO₂ concentrations. Low-K glasses form a tight trend in the CaO versus K₂O space, which matches very well those of the glasses from the To-Cu eruption found at the distal sites across North Honshu (Ishimura and Hiramine, 2020). Other major element oxides also match but do not discriminate as well between the K-rich and low-K glasses. Although small deviations occur (e.g., a seemingly higher TiO₂ in the distal To-Cu glasses), these seem rather attributable to interlaboratory bias than to actual differences. Thus, I propose that the Site M0090 low-K glasses originate from explosive eruptions of the Towada volcano.

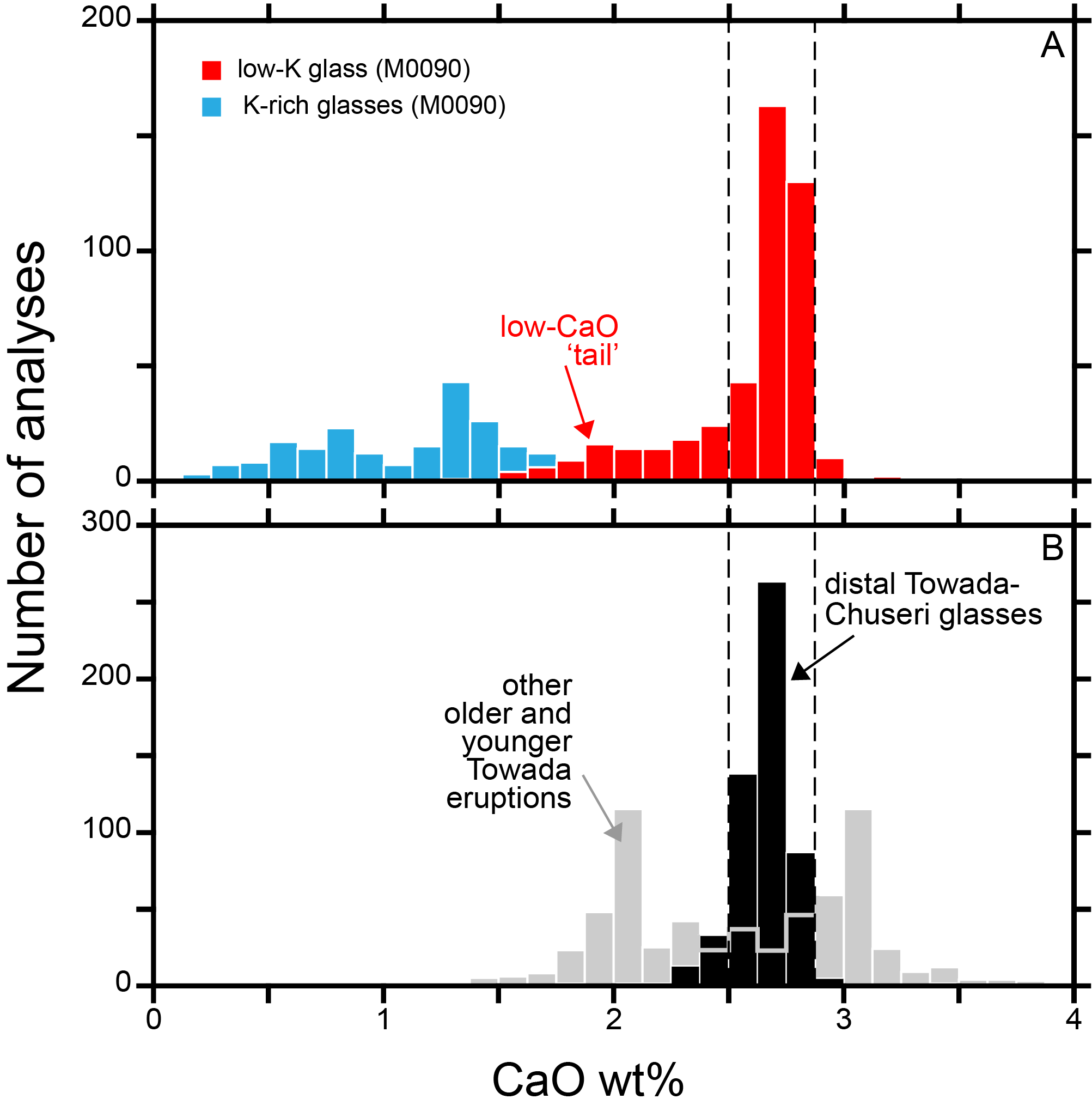

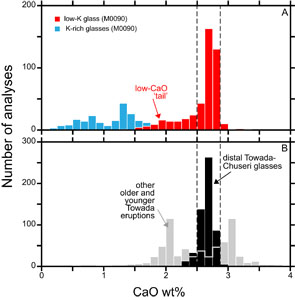

To further assess the similarities between the Site M0090 low-K glasses and the distal To-Cu glasses shards, which are extensively investigated (Ishimura and Hiramine, 2020), their CaO distribution is compared in Figure F4.

The Site M0090 low-K glasses show a very similar abundance distribution to the distal To-Cu glasses from Ishimura and Hiramine (2020), which supports (but does not prove) a common origin. However, the Site M0090 low-K glasses also exhibit a tail of lower CaO glasses, which have not been observed within the distal, subaerial To-Cu glasses (Ishimura and Hiramine, 2020). The glasses in the low-CaO tail also have slightly lower FeO and very slightly higher K₂O than reported from distal subaerial To-Cu glasses. However, such low-K, low-CaO glasses are typically present in older and younger eruptions of Towada (Ishimura, 2024). Thus, although the low-K glasses are in all likelihood from Towada volcano, they may not exclusively represent the To-Cu eruption, or may even originate from other explosive Towada eruptions.

3.2. Emplacement mode

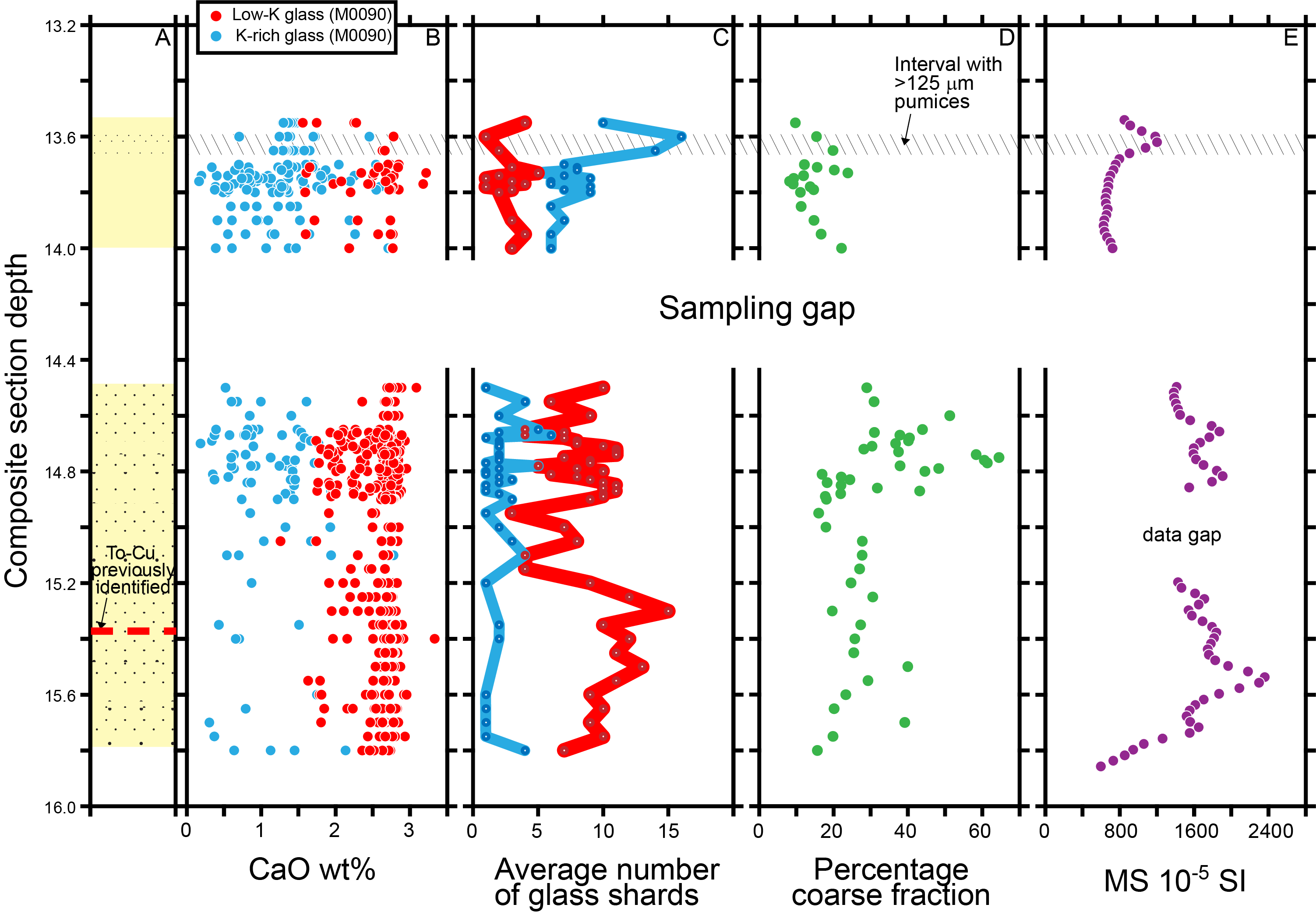

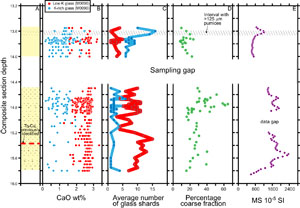

The Site M0090 low-K and K-rich glasses are plotted against section depth in Figure F5. Both glass types are present in each sample of the lower and higher stratigraphic sections. Based on the compositional data collected, there is no horizon recognizable where the low-K glasses are more strongly concentrated in such a way that an instantaneous fallout event was marked. The only stratigraphic change occurs in the number of glass shards analyzed from low-K and K-rich glasses, which varies with depth: the low-K glasses are most abundant in the lowermost part and then slightly decrease with decreasing section depth, and the K-rich glasses become more frequent at the same time. Moreover, in the stratigraphically higher interval, the count is reversed, with fewer low-K glasses analyzed than K-rich glasses.

The reversal in the abundances of the glass compositional type is paralleled by a slight overall decrease in the percentage of the coarser (>27 µm) sediment fraction with decreasing stratigraphic depth. The highest percentages of the coarser (>27 µm) fraction are reported from an interval where samples are spaced 1 cm apart and where the centimeter-scale grain size variations may be better resolved. The trend and fluctuations of MS are consistent with these variations, which suggests that grain size and coarser particle load decrease with decreasing depth.

No sample was taken below the coarse-grained layered sediment sequence. Thus, it remains open whether the low-K glass distribution drops below the base of the coarse-grained layered sediment sequence or even disappears altogether with increasing core depth. All the same, the persistent presence of low-K and K-rich glasses throughout the coarse-grained layered sediment sequence suggests that they were emplaced as part of this entire sequence and not as discrete layers of either type. It is possible that the coarse-grained layered sediment was deposited from a turbidite mass flow, which typically has a finely layered structure due to variations in grain size and componentry. Possibly, the previously identified lenticular layer of To-Cu airfall ash marks a thin lamina where (low-K) glasses are sufficiently concentrated to become visible to the naked eye.

It is possible that the rapid deposition of airborne ash from an explosive Towada eruption onto the steep submarine continental slope triggered downslope flow into the trench. Entrainment of older sediment from the slope surface, including tephra glasses from previous K-rich and Towada eruptions, may then account for the presence of multiple glass populations in the sediment sequence investigated.

4. Acknowledgments

This research used samples and data provided by IODP. IODP curator Yusuke Kubo and his staff at the IODP Kochi Core Center in Japan are thanked for taking the U-channels of Site M0090 cores. Celine Martin is thanked for her support with the electron microprobe work at the AMNH. Comments from reviewer Daisuke Ishimura and editor Ken Ikehara improved this report. Funding for this research was provided by a USSSP Post-Expedition Activity award grant to S.M. Straub.
